Fully Loaded Mixer for the Studio and Stage!

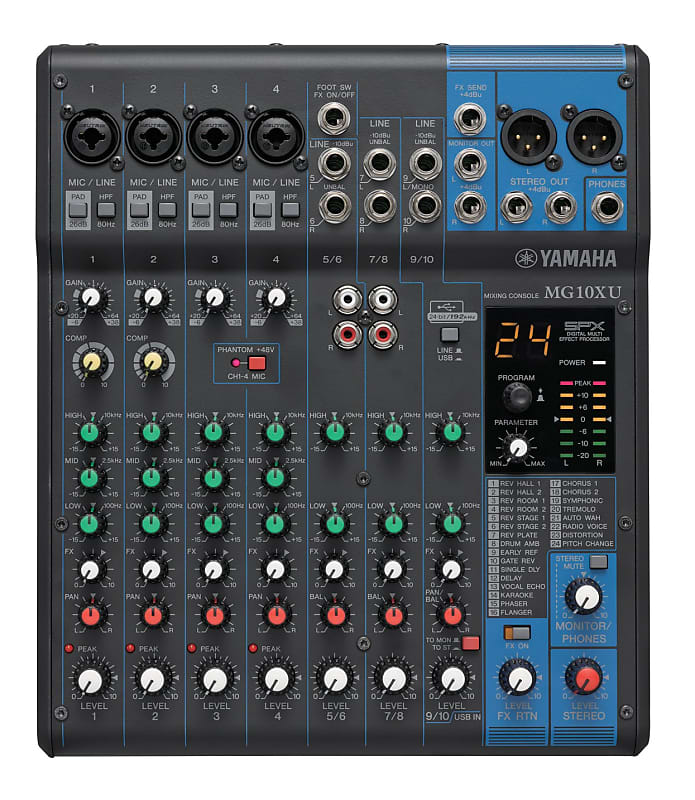

With its rich features and outstanding sound quality, Yamaha’s MG10XU analog mixer is well-suited for smaller, portable rigs. This 10-channel analog mixer features USB connectivity to integrate into a DAW-based workflow. What’s more, it has onboard digital effects to polish the natural-sounding bass and smooth highs to perfection. The MG10XU comes loaded with crystal-clear D-PRE preamps to squeeze every drop of tone from your mics and a quality op-amp to ensure your mix sounds transparent and articulate.Featuring onboard digital effects, switchable phantom power, a pad switch, one-knob compressors, EQ, and LED metering, the MG10XU can take on just about any task you throw at it. Thanks to its battery of state-of-the-art features from Yamaha’s high-end consoles, the MG10XU is ready to work for you!
D-PRE discrete Class-A mic preamps deliver clean and natural sound
Nobody wants to hear mics that are plugged into thin, distorted, or underpowered preamps. And that’s one of the reasons why this mixer comes equipped with transparent D-PRE preamps. They serve up greater power with lower impedance, ensuring that your bass sounds natural while your highs remain clear and present. D-PREs simply sound good — without over-hyping any specific elements of your mix. The pure sound provided by the D-PRE preamps ensures that you won’t need to spend hours EQ-ing just to get a barely-acceptable sound.
One-knob compressors provide easy-to-use dynamics control
When you’re in the middle of a live event, you don’t have time to tweak a large number of complex outboard units. To resolve this issue, Yamaha equipped this mixer with simple, time-saving one-knob compressors. Simply twist a single rotary control and you can dial in livelier guitars, punchier basses, tighter drums, and well-defined vocals.
EQ and highpass filter allow for effective sound shaping
Whether you’re tweaking your sound to perfection or removing troublesome frequencies, EQ is necessary for building a successful mix. Featuring effective and powerful equalizers on all mono channels, Yamaha MG Series mixers provide ample control over the tonal balance of your mix. Additionally, a highpass filter allows you to get rid of any low-frequency mud that might be present in your mix.
Built-in SPX digital effects add polish and professionalism
In order to add that final glue and polish to your mix, Yamaha’s MG Series mixers provide you with a comprehensive suite of 24 editable digital effects. Based on Yamaha’s acclaimed SPX digital multi-effect processor, the MG Series delivers high-quality reverb, delay, chorus, phaser, flanger, tremolo, and auto-wah, in addition to distortion, pitch effects, and more.
High quality op-amp ensures transparent sound reproduction
Here we know that few things will kill tone as quickly as sub-par op-amps. The Yamaha MG Series utilizes high-quality MG01 op-amps, ensuring that your mix sounds its best. When designing these op-amps, Yamaha focused on sound quality, rather than prioritizing electrical design and efficiency. Yamaha has always striven to deliver the purest possible signal instead of imparting their “signature” to your sound, and the MG Series is no exception. You can count on a transparent, natural, and articulate sound when you mix through an MG Series analog mixer.
Yamaha MG10XU 10-channel Analog Mixer Features:
- D-PRE mic preamps deliver clean, transparent, and natural sound
- 3-band EQ on all mono channels offers immediate sound-shaping
- 1-knob compressors provide straightforward dynamics control
- Class-compliant USB 2.0 enables recording and playback with computers and tablets
- SPX effect processors provide you with a comprehensive suite of 24 effects
- Built-in pads on each mono input makes it easy to manage loud sources
- Durable metal chassis lasts through years of use onstage
- Computer Connectivity:USB (2 x 2)
- Inputs – Mic Preamps:4 x Combo
- Phantom Power:48V
- Inputs – Line:6 x TRS
- Inputs – Other:4 x RCA
- Outputs – Main:2 x XLR, 2 x TRS
- Outputs – Other:2 x TRS (Monitor)
- Aux Sends:1 x Post
- Send/Return I/O:1 x TRS
- Headphones:1 x 1/4″
- USB:1 x Type B
- EQ Bands:3-Band (High, Mid, Low)
- Weight:4.63 lbs.
